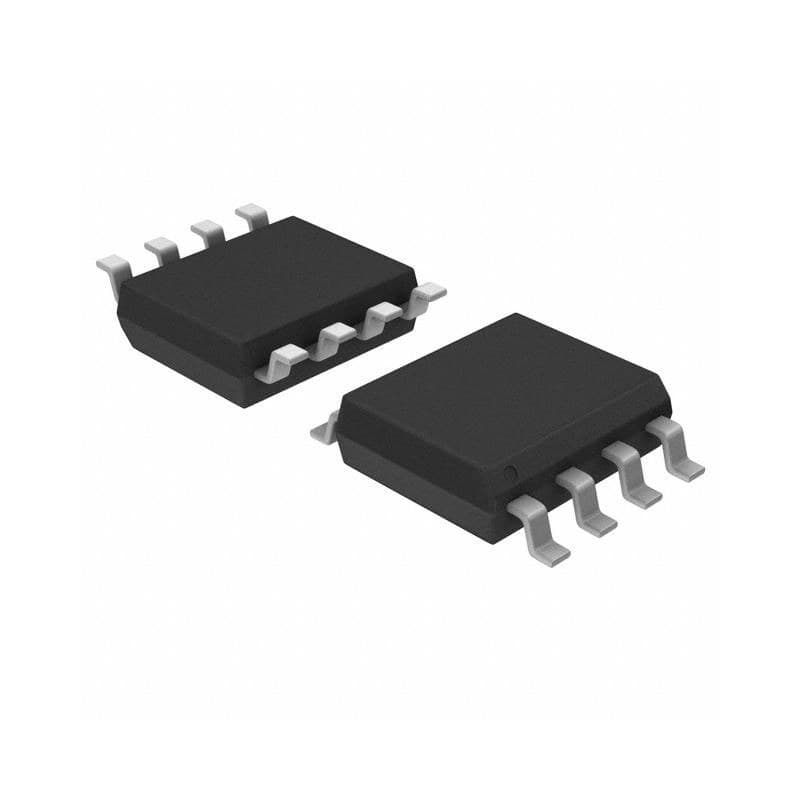

Microchip Technology TC77-5.0MOA Temperature Sensor
Temperature Sensor · Microchip Technology
Microchip Technology TC77-5.0MOA. Supply Voltage: 5.0 V nominal; 2.7 V to 5.5 V operating; Resolution: 13-bit, 0.0625°C/LSB; Accuracy: ±1°C from +25°C to +65°C; ±2°C from −40°C to +85°C; Interface: 3-wire SPI / Microwire compatible; Quiescent Current: 250 µA typical; 400 µA maximum Request a quote for pricing and availability.
- Supply Voltage
- 5.0 V nominal; 2.7 V to 5.5 V operating
- Resolution
- 13-bit, 0.0625°C/LSB
- Accuracy
- ±1°C from +25°C to +65°C; ±2°C from −40°C to +85°C
- Interface
- 3-wire SPI / Microwire compatible
- Quiescent Current
- 250 µA typical; 400 µA maximum
- Package / Case
- 8-pin SOIC
- Professional sourcingVetted supply chain with documented traceability
- Genuine partsDocumented traceability on every shipment
- ESD-safe handlingOriginal packaging, moisture controlled
- Worldwide shippingConsolidated freight to 100+ countries
Specifications
Core ratings and package details for this temperature sensor (TC77-5.0MOA). Use the table below when comparing drop-in options or validating a schematic callout.
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Manufacturer Part Number | TC77-5.0MOA | Frequency | f CLK DC — 7.0 MHz |
| Manufacturer | Microchip Technology | Supply Current | TC77-5.0MXX |
| Category | Temperature Sensor | Product Type | Digital temperature sensor with SPI interface |
| Availability | Contact Us | Supply Voltage | 5.0 V nominal; 2.7 V to 5.5 V operating |
| Operating Voltage | Range V DD 2.7 — 5.5 V Note 1 | Resolution | 13-bit, 0.0625°C/LSB |
| Input Voltage | V IH 0.7 VDD —V DD + 0.3 V | Accuracy | ±1°C from +25°C to +65°C; ±2°C from −40°C to +85°C |
| Input Voltage | V IL -0.3 — 0.3 V DD V | Interface | 3-wire SPI / Microwire compatible |
| Output Voltage | V OH 2.4 — — V I OH = -400 µA | Quiescent Current | 250 µA typical; 400 µA maximum |
| Output Voltage | V OL —— 0 . 4 V I OL = +2 mA | Package / Case | 8-pin SOIC |
| Capacitance | C IN, COUT —2 0 — p F |
