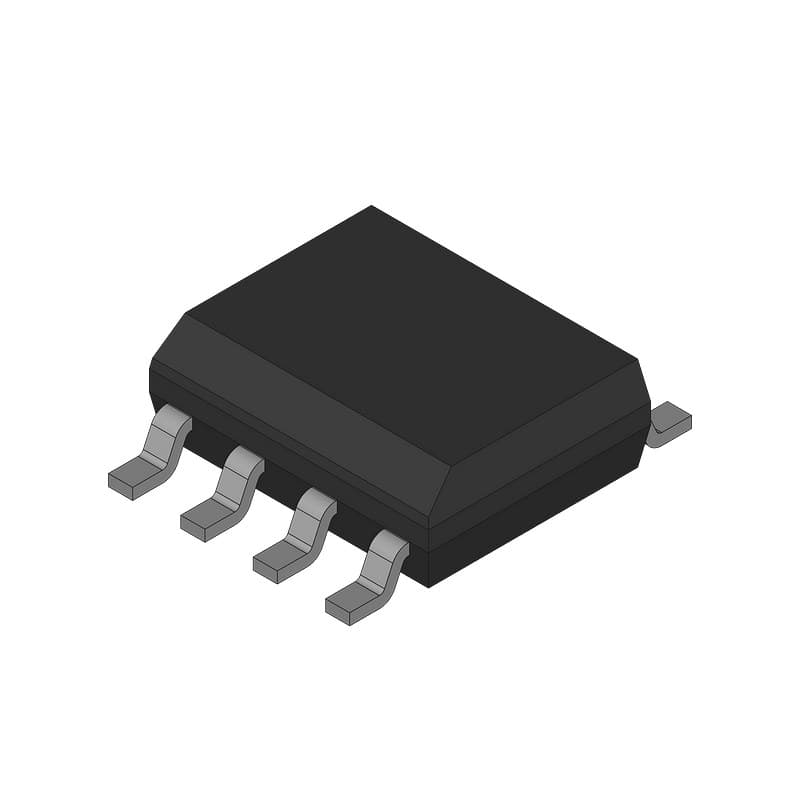

Analog Devices AD22100AR Temperature Sensor
Temperature Sensor · Analog Devices
Analog Devices AD22100AR temperature sensor analog, local -40°c ~ 85°c 22.5mv/°c 8-soic. Key specifications include Voltage - Supply: 4V ~ 6.5V; Operating Temperature: -50°C ~ 150°C; Package / Case: 8-SOIC (0.154", 3.90mm Width); Supplier Device Package: 8-SOIC; Mounting Type: Surface Mount. Request a quote for pricing
- Voltage - Supply
- 4V ~ 6.5V
- Operating Temperature
- -50°C ~ 150°C
- Package / Case
- 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package
- 8-SOIC
- Mounting Type
- Surface Mount
- Output Type
- Analog Voltage
- Professional sourcingVetted supply chain with documented traceability
- Genuine partsDocumented traceability on every shipment
- ESD-safe handlingOriginal packaging, moisture controlled
- Worldwide shippingConsolidated freight to 100+ countries
Specifications
Core ratings and package details for this temperature sensor (AD22100AR). Use the table below when comparing drop-in options or validating a schematic callout.
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Availability | Contact Us | Output Type | Analog Voltage |
| Voltage - Supply | 4V ~ 6.5V | Description | SENSOR ANALOG -40C-85C 8SOIC |
| Operating Temperature | -50°C ~ 150°C | Detailed Description | Temperature Sensor Analog, Local -40°C ~ 85°C 22.5mV/°C 8-SOIC |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Part Status | Obsolete |
| Supplier Device Package | 8-SOIC | Series | - |
| Mounting Type | Surface Mount |
